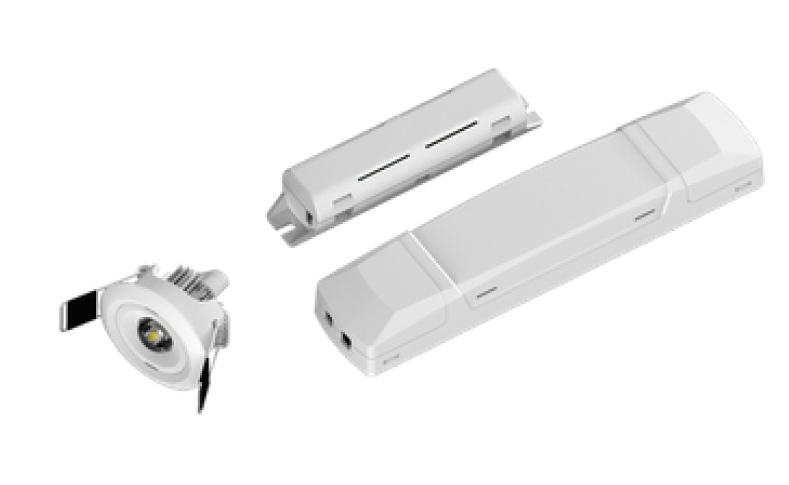

A versatile emergency lighting solution designed for focused illumination in critical situations.
This compact pin spot fitting is supplied with interchangeable lenses for both open area and
corridor applications.
Technical Specs & Notes
Description LED Emergency Spot, Non Maintained
Input Voltage 220-240V
Total Wattage 1.5W (Charging mode)
Luminaire Lumens 120lm (Charging Mode
Lumens P/Watt 12lm/W
LED Chips Bridgelux chips
LED Forward Voltage / Current 2.8-2.9V/350mA
LED Chip Lifetime (L80) >50,000hrs
CCT 6500K
Power Factor 0.2
Running Current 20mA
Inrush Current 4.5A
Material / Finish PC / RAL9016
Class / IP / IK Class 1 / IP20 / IK08
Beam Angle LK: 145°; LX:169°
Glow Wire Testing (TP rating) 850°C
Installation Method Recessed
Temperature 0°C - 40°C
Warranty 5 years warranty
Certificates CE, UKCA, ROHS
Emergency Information
Emergency Converter n/a
Emergency Duration 3hrs
Emergency Lumens LK:120lm/LX:100lm (DC)
Battery LiFePO4 3.2V 1000mAh
